25 Ton Electric Rail Flat Car Self-Driven Railway Flat Wagon

25 Ton Electric Rail Flat Car Self-Driven Railway Flat Wagon

1. Product Overview
This electric low-platform flat car can travel independently or be towed. It is widely used for transporting construction equipment, rails, sleepers and materials in railway construction, industrial and mining enterprises, logistics ports and metallurgical plants.

2. Core Advantages

• Strong Load-Bearing: 25t rated load, ≤15t self-weight, all-steel welded frame and center beam bearing structure, stable and durable.
• Efficient Operation: Dual 22kW drive motors, 25km/h max speed with stepless speed regulation; 100m minimum curve radius for flexible operation.
• Safe & Reliable: Complete braking system (air brake, foundation brake, NSW hand brake) and wheel-shoe braking, with safety hangers for all parts.

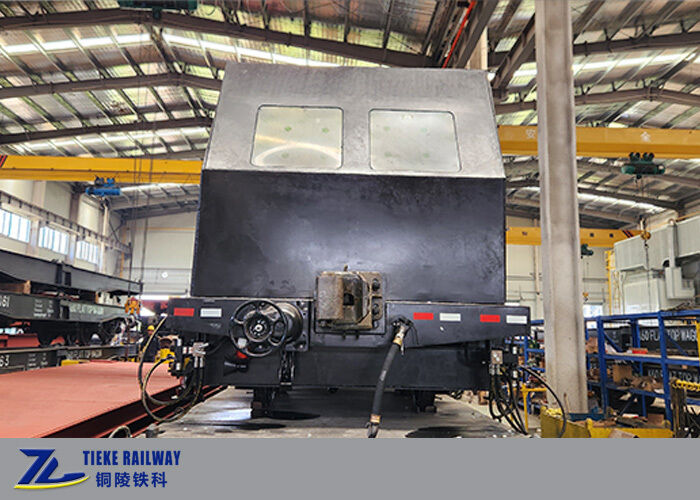

• Easy to Operate & Maintain: Equipped with driver's cab, supporting on-board and remote control; streamlined structure, low maintenance cost.
• Customizable: Lock seat, track gauge, size and power supply can be customized to meet different regional needs.
• Energy-Saving & Eco-Friendly: Electric drive, no exhaust emission, lower operation cost than fuel-powered vehicles.25 Ton Electric Rail Flat Car

3. Main Technical Parameters

4. Main Structure

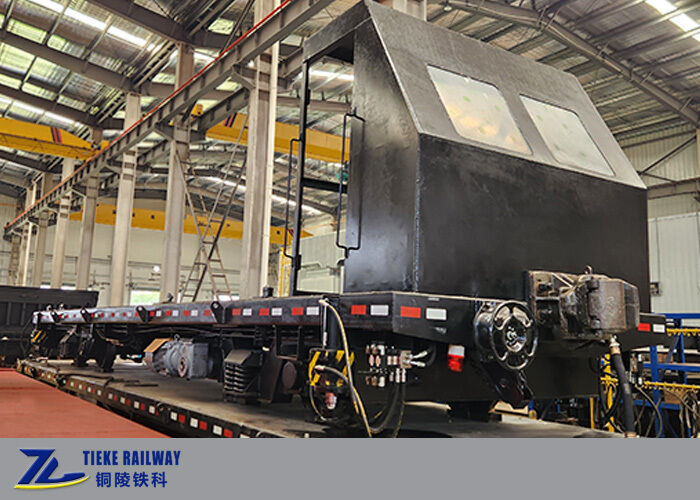

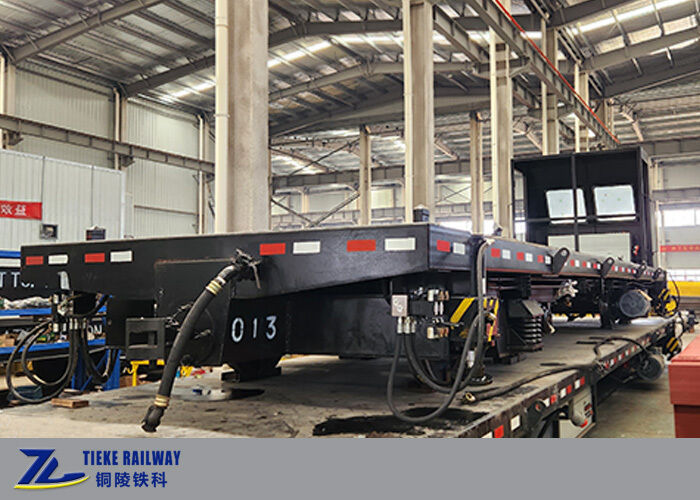

• Car Body: All-steel welded underframe with 6mm checkered steel plate, stable and anti-skid.
• Bogie: Driven & active bogies (welded structure), active bogie with 2 sets of frequency conversion motor + reducer.
• Braking System: Air brake, foundation brake and NSW hand brake for safe deceleration and parking.
• Coupler Device: C-grade steel No.2 coupler & small coupler, 2 vehicles per group for linkage transport.
• Hydraulic Device: 4 horizontal push (600mm extension) and 4 lifting cylinders (400mm stroke) for easy maintenance.

5. Application Scenarios

• Railway & Subway Construction
• Industrial & Mining Enterprises
• Logistics & Ports
• Power & Construction Industry
